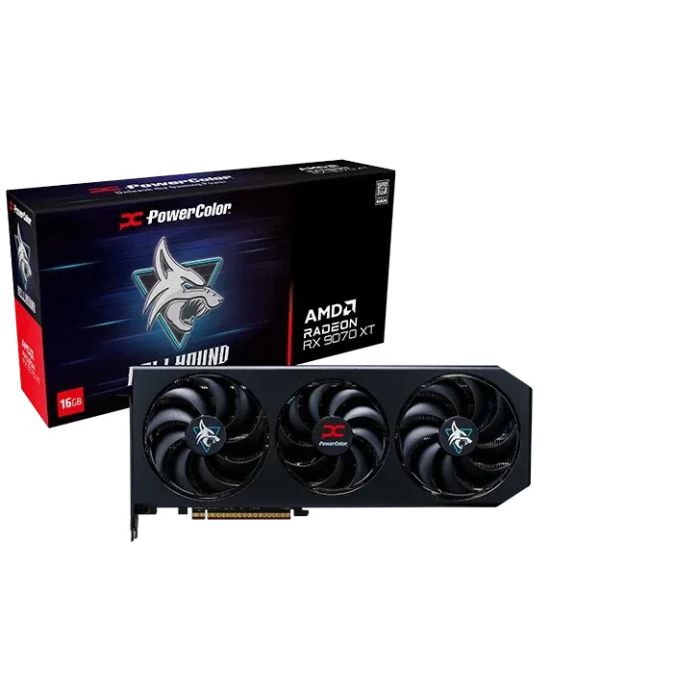

PowerColor Hellhound Radeon RX 9070 XT 16GB

SPECIFICATION
Graphics Engine AMD Radeon™ RX 9070 XT
Model Name RX9070XT 16G-L/OC
Series Hellhound
Stream Processor 4096 Units
Video Memory 16GB GDDR6
Memory Speed 20.0 Gbps
Memory Interface 256-bit
Engine Clock(OC) up to 2460MHz(Game)¹ up to 3010MHz(Boost)²
Engine Clock(STD/Silent) up to 2400MHz(Game)¹ up to 2970MHz(Boost)²
Bus Standard PCIE 5.0 x16
Standard Display Connectors 1 x HDMI 2.1b，3 x DisplayPort 2.1a

Feature Support
DirectX® Support 12
OpenGL 4.6
AMD Eyefinity Technology Support
AMD Stream Technology Support
AMD Smart Access Memory Support

Maximum Resolution
DisplayPort 7680×4320
HDMI 7680×4320

Power Specs + Board Dimensions
Board Dimensions 327mm*128mm*49mm 340mm*142mm*49mm(with bracket)
Slot 2.5
Minimum System Power requirement (W) 800W
Extension Power Connector Two 8-pin PCI Express Power connectors

Remark
¹Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
²Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
