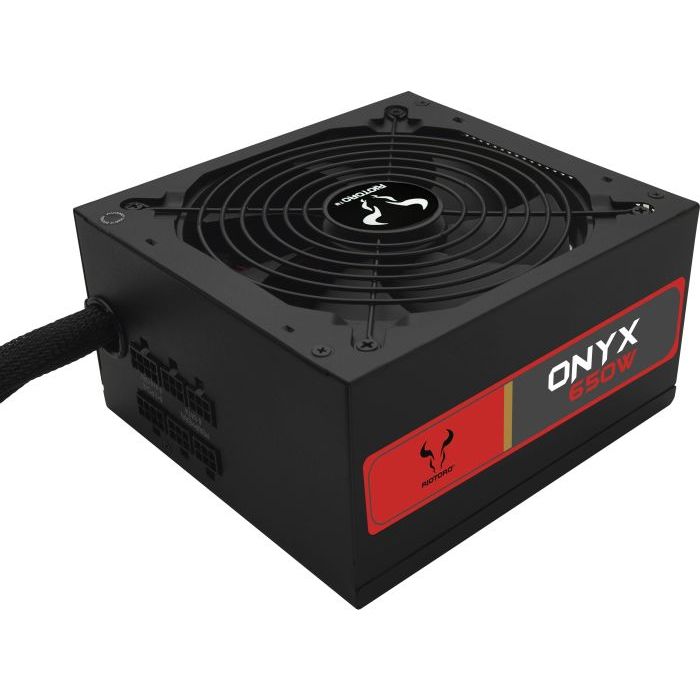

Riotoro Onyx 650W

Engineered to exacting specifications, the RIOTORO Onyx 650W power supply is based on a new platform that hits the sweet spot for practical, real-world performance, reliability, and price. Ideal for new PC builds or upgrades, the Onyx series semi-modular PSUs are built to our high standards and compatibility for modern processors and motherboards for trouble-free operation. The Onyx PSUs are 80 PLUS Bronze certified efficient for reduced energy costs, heat, and noise. Like all RIOTORO PSUs, the Onyx 650W features full voltage, current, power, and short-circuit protections for improved safety.

Product Features

• 80 PLUS Bronze efficiency reduces heat, noise, and operating cost

• Semi-modular design and flat cables reduces clutter, eases installation, and improves

airflow

• Japanese capacitors for improved reliability

• Fully compatible with latest Intel and AMD processors, motherboards, and GPUs

• Thermally controlled fan is virtually inaudible under average loads

• 3 year warranty

Details:

• Type: ATX 12V 2.4

• Continuous Power: 650 watts

• 80 PLUS Certification: 80 PLUS Bronze

• Cable connection: Semi-modular

• Cables: Flat

• Fan size: 120mm

• Fan bearing: Sleeve bearing

• Japanese capacitors: Yes

• Dimensions: 150 mm (W) x 140 mm (L) x 85 mm (H)

Connectors:

• ATX 24-pin: 1

• CPU (EPS ATX12V) 8-pin (4+4): 1

• PCI-E (6+2 pin): 2

• SATA: 6

• Peripheral (4-pin): 3

• Floppy: 1

AC Input:

• AC Input: 100-240VAC

• AC Current: 10 Amps

• AC Frequency: 50-60Hz

DC Output:

• +3.3v: 25A

• +5v: 25A

• +12V: 54A

• +5Vsb: 3A

• -12V: 0.8A

Operating Temperature: 0-50 °C

MTBF (hours): 100,000

Safety and EMC: FCC, cULus, CCC, CE, BSMI, UL

Environmental Compliance: RoHS, WEEE
