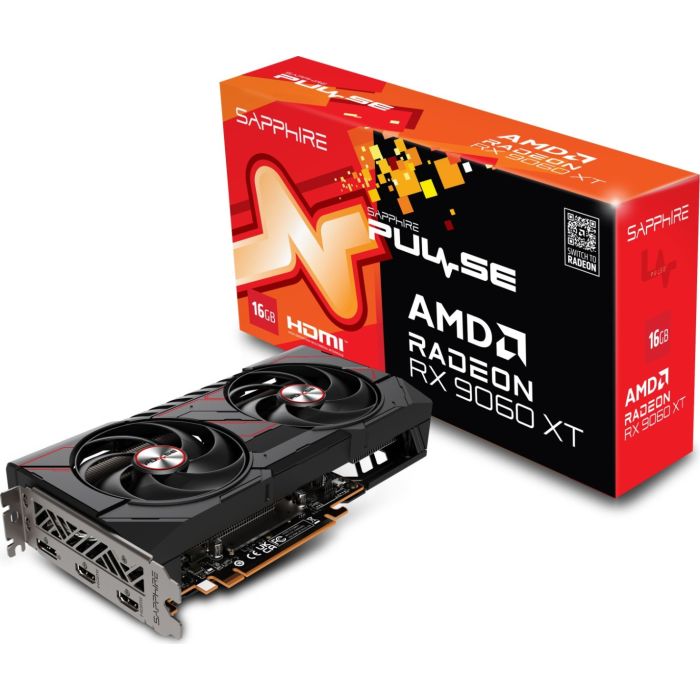

Sapphire Pulse Radeon RX 9060 XT 16GB

GPU
AMD Radeon™ RX 9060 XT Graphics Card
AMD RDNA™ 4 Architecture
Engine Clock
Boost Clock: Up to 3290 MHz
Game Clock: Up to 2700 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 2048
Compute Units 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache 32MB
Ray Accelerators 32
AI Accelerator 64
Memory Size/Bus 16GB/128 bit GDDR6
Memory Clock 20 Gbps Effective
Displays Maximum 3 Displays
Resolution HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320
Interface PCI-Express 5.0 x16
Output 2x HDMI® 1x DisplayPort™ 2.1a

BIOS Support UEFI
Game Index 1440P
Sapphire Features
Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Dual-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
Sleeve Bearing Fans
9-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
DisplayPort™ 2.1a
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon™ Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX™ technologies
Microsoft® DirectX® 12 Ultimate
AMD Noise Suppression
AMD Freesync™ technology
AMD Infinity Cache
16 GB of GDDR6 on 128-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition™ application
Cooler Type
Dual-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Sleeve Bearing
Form Factor 2.3 slot, ATX
Dimension: 240(L)X 124(W)X 46.1 (H)mm
Power Consumption 170W Typical Board Power
OS Linux®, Windows® 10, and Windows 11. 64-bit  operating system required
System Requirement Minimum 450 Watt Power Supply 1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
