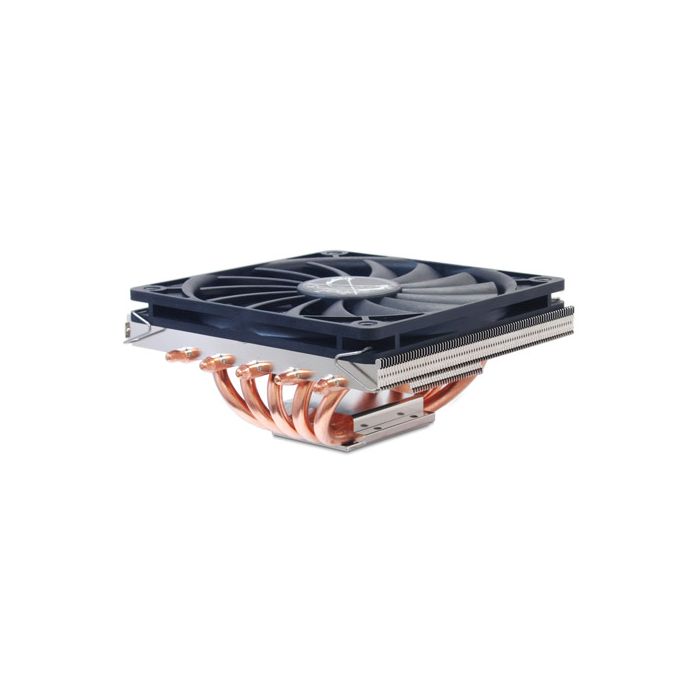

Scythe Big Shuriken 2 Rev. B SCBSK-2100

€37,00
End of life
SKU
HXLY49
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

The Update of Big Shuriken equipped with an additional 6 mm Heatpipe as well as an additional row of fins. This way, cooling efficiency could be significantly increased. By keeping the height of 58 mm compatibility especially with HTPCs (Home Theater Personal Computers) and computer systems with restricted dimensions could be preserved. In addition higher compatibility with new generation chipset motherboards was established by inventing F.S.M.B.4 (Flip Mount Super Back-Plate 4) mounting system. Rev. B also provides compatibility with Intels new LGA2011 Socket

Improved cooling performance

Compared with its predecessor model the Big Shuriken 2 Rev. B is equipped with an additional heatpipe as well as an additional row of fins. By these improvements combined with a 2,000 rpm Slip Stream 120 Slim Series fan, higher cooling efficiency could be achieved. By applying the othodox method of pointing the airflow of the fan towards the motherboard, chipsets and MOS-FETs on VR modules can be cooled simultaneously.

Slip Stream 120 Slim PWM Fan

The Big Shuriken 2 Rev. B is equipped with a new Slip Stream 120 Slim PWM fan (2,000 rpm) with small motor hub for better airflow. The fan can be replaced by general 120 mm fans with open corners for screw holes.

Higher Compatibility

One of the main characteristics of the Big Shuriken 2 Rev. B is its outstanding compatibility. Only 58 mm in height it is versatile for all use and a perfect solution for low Profile PC chassis. In addition, the new F.M.S.B. 4 (Flip Mount Super Back-Plate 4) mounting system provides high compatibility with new generation chipset motherboards. Big Shuriken 2 Rev. B is also compatible to Intels new LGA2011 Socket.

Model name:
BIG Shuriken 2 Rev. B

Modell number:
SCBSK-2100

Compatibility:
Intel®:
Sockel T / LGA775
Sockel LGA1155 / 1150
Sockel LGA1156
Sockel LGA1366
Sockel LGA2011

AMD®:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1

Combined Dimensions:
125 x 135 x 58 mm

Gewicht:
410 g

Accessory:

Manual, Thermal Grease

Baseplate-Material:
Nickel-plated copper (more information)



Fan specifications

Model Name:
Slip Stream 120 Slim PWM

Model No.:
SY1212SL12H-P

Fan Dimensions:
120x120x12 mm

Fan Speed:
500 (±200 rpm) - 2.000 rpm (±10%) - PWM-controlled

Noise Level:
9.32 – 33.67 dBA

Air Flow:
12.13 - 45.47 CFM = 21 - 78 m³/h

Static Pressure:
0.11 – 1.35 mmH2O / 1.08 - 13.2 Pa

Input Current:

0.19 A

Bearing Typ:
Sleeve Bearing

Voltage:
12 V

Meer informatie
EAN 4571225049441
Vendor ID SCBSK-2100
Voorraad status End of life
Socket Socket 1150, Socket 1151, Socket 1155/1156, Socket 1366, Socket 2011, Socket 2011-v3, Socket 775, Socket AM2/AM3, Socket AM3+, Socket FM1, Socket FM2/FM2+
Aantal Heatpipes 5 Heatpipes
Type koeling Lucht koeling
