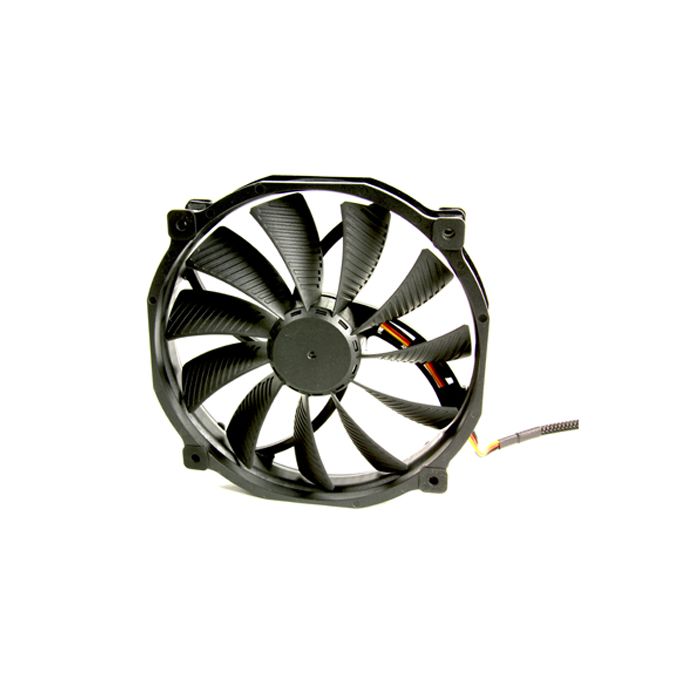

Scythe GlideStream PWM 140mm SY1425HB12M-P

NEW - Special Fan Blades
The fan blades of the new GlideStream series are furnished with special "grooves" - these contribute to even less air resistance, optimizing the airflow.

Anti-Vibration-System
All fans of this series have the mounting holes fitted with rubber inlays to keep unpleasant vibration noise at a minimum.

 Designed for 120 mm Screw Hole Compatibility

The 140 mm GlideStream fans are fitted with mounting holes suitable for 120 mm dimensions. This is achieved by the unique "rounded corners" resulting in high airflow combinded with low noise.

 PWM-Function

The pwm-model (Pulse-width modulation) of the new GlideStream-series. By using a pwm-capable motherboard, this fan can be controlled automatically. This function allows a more flexible rpm regulation, making it more convenient for the user. With the included adaptor, the Grand Flex 120 PWM can also be used without making use of the pwm function.

Model Name:
GlideStream 140 mm PWM Fan

Model-No.:
SY1425HB12M-P

Dimensions:
140 x 140 x 25 mm / 5.51 x 5.51 x 0.98 in

Fan Speed:
500 ± 300 rpm～1300 rpm ± 10%

Noise Level:
13.0 ～ 30.7 dBA

Luftdurchfluss:
37.37～97.18 CFM

Voltage:
12 V

Weight:

137 g / 4.83 oz

Connectors:
4-pin (3 to 4-pin Molex-Adaptor included)

Bearing Type:
Sleeve Bearing

MTBF:
30.000 hours
