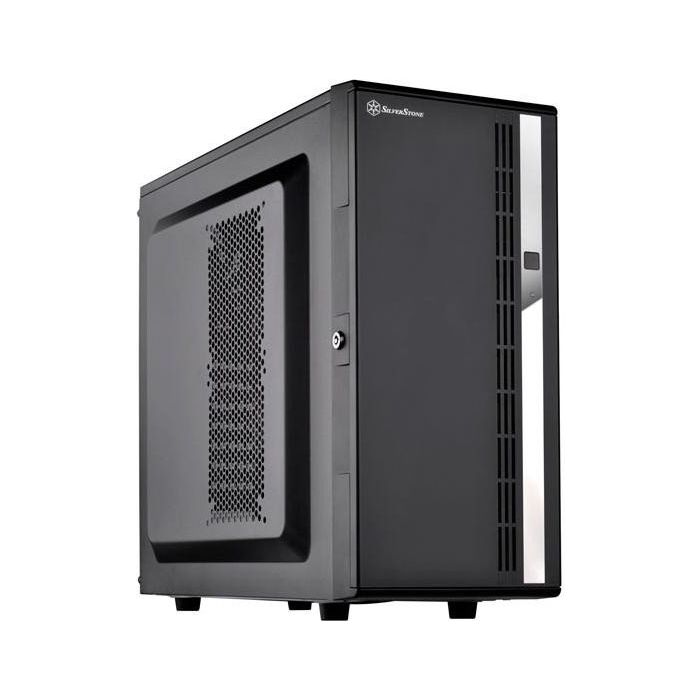

SilverStone Case Storage Series SST-CS380
￭ Compact mid-tower chassis design with space-saving footprint
￭ Supports eight hot-swappable 3.5" or 2.5" SAS/SATA drives with built-in backplane
￭ Classic SilverStone styling
￭ Includes two flexible 5.25" drive bays for more storage options
￭ Lockable front door and power button design
￭ Includes three 120mm fans with filtered intake vents
To fulfill the needs of enthusiasts looking for a compact, flexible NAS tower chassis, SilverStone designed the CS380. With the ability to accommodate standard components such as ATX motherboards, standard ATX (PS2) power supplies, dual 5.25" drive bays, standard-sized expansion cards, and even liquid coolers, the CS380 can easily meet the demands for majority of NAS builds. Equipped with two 120mm intake fans, a 120mm rear exhaust fan, and easily removable filters, keeping everything cool and dust-free is as easy as in any SilverStone premium chassis. Safety features such as lockable front door and power button are also included.
Completing a great chassis structure is a modular, eight hot-swappable drive cage design that support both 3.5" and 2.5" drives. It utilizes a custom backplane supporting both SATA and SAS interfaces for increased compatibly with nearly all modern hard drives or SSDs. With a size that is nearly identical to most ATX mid towers, the space-saving CS380 is perfect for anyone looking to build a powerful NAS for home or office.
| Model No. | SST-CS380B (black) | |
| -- | ||
| -- | ||
| -- | ||
| Material | Plastic front door, steel body | |
| Motherboard | ATX, Micro-ATX, Mini-ITX | |
| Drive bay | External | 5.25" x 2 |
| -- | ||
| Internal | 3.5" SAS/SATA hot-swap x 8 (2.5" compatible) | |
| Cooling system | Front | -- |
| Rear | 1 x 120mm fan, 1200rpm (Compatible with 120mm fan/radiator) | |
| Side | Dedicated drive bracket 120mm fan x 2, 1200rpm | |
| Top | -- | |
| Bottom | -- | |
| Internal | -- | |
| Expansion slot | 7 | |
| Front I/O port | USB 3.0 Type-A x 2 Audio x 1 MIC x 1 |
|
| Power supply | Standard PS2(ATX) | |
| Expansion card | Compatible up to 9.5" (241mm), width restriction - 5.9" (149mm) | |
| Limitation of CPU cooler | 146mm | |
| Dimension | 215.3mm (W) x 426.5mm (H) x 487.5mm (D) , 44.7 Liters 8.48" (W) x 16.79" (H) x 19.19" (D) , 44.7 Liters |
|
| EAN | 4710007223871 |
|---|---|
| Vendor ID | SST-CS380 |
| Voorraad status | End of life |
| Soort kast | Midi tower |
| Materiaal | Staal / Plastic |
| Aantal 3,5 inch intern | 8 bays |
| Aantal 5,25 inch extern | 2 bays |
| Venster in de zijkant | Nee |
| Front USB aansluiting | USB 3.0 |
| Form Factor | ATX |
| Inclusief voeding | Nee |
| Color | Zwart |
