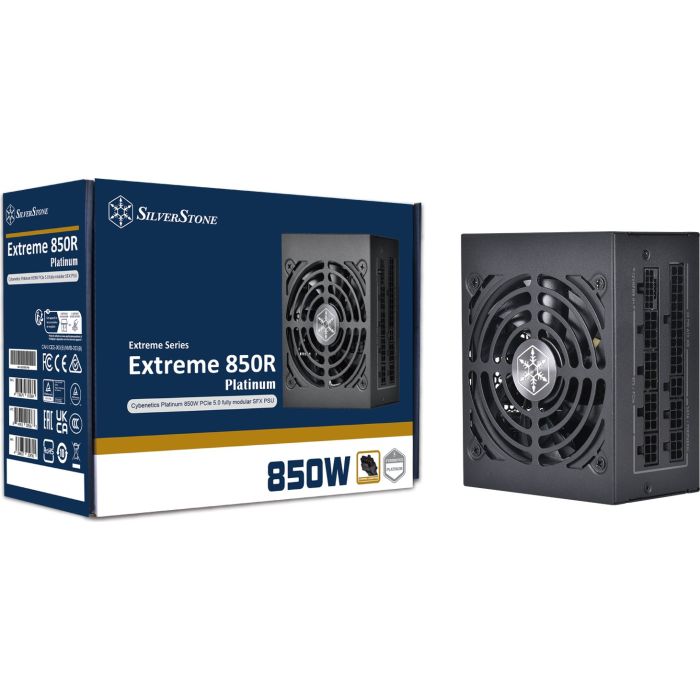

SilverStone Extreme Series EX850R Platinum 850W SFX
Op voorraad bij leverancier (2-5 werkdagen)
Equipped with Gen5 12VHPWR PCIe connector, meeting Intel SFX 12V V4.0 specification standard
Cybenetics Platinum efficiency certification
24/7 continuous power output with 50℃operating temperature
Ultra-silent 92mm FDB fan with fan intelligent deactivates and delayed shut off function
Flexible flat cables have much greater flexibility to allow for tighter folding
Fully Modular design
All Japanese electrolytic capacitors
Product No. SST-EX850R-PM
Model (safety certification) SST-SX0850MCPT-A
Color Black (lead-free paint)
Max. DC Output 850W
Power density 1070W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 70.8A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5/-7% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V 100W
Combined +12V 850W
Input Voltage 180 ~ 264 Vrms
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC.（PF>0.9 at Full Load）
Efficiency ≥89% & <91% overall efficiency
MTBF 100,000 hours
Operating temperature 0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
2 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
8 x SATA connectors
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy connector
Cooling System Silent 92mm FDB fan
Noise Level 0 dBA minimum
Certification Cybenetics Platinum
Form factor SFX
Dimension 125 mm (W) × 63.5 mm (H) × 100 mm (D)
Weight 1.6kg
| EAN | 4710679815664 |
|---|---|
| Vendor ID | SST-EX850R-PM |
| Energie Certificering | 80 Plus platinum |
| Modulair | Ja |
| Wattage | 800W - 900W |
| Aantal ATX 12V | 2 x 8 (4x4) polig |
| 12VHPWR | PCIe 5.0 12VHPWR |
| Aantal PCI-E | 2 x 6+2 / 2 x 6-polig |
| Sata connectors | 8 X Sata |
| Molex 4-pin | 3 x molex |
