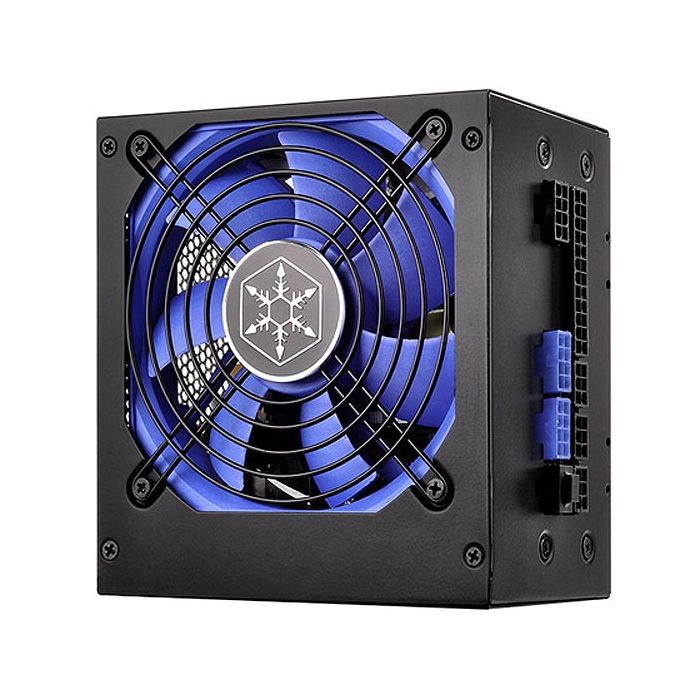

SilverStone Strider 600W

Beschikbaarheid: Op voorraad bij leverancier (2-5 werkdagen)

€ 88,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

SilverStone
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

■ High efficiency with 80 PLUS Bronze certification

■ 24/7 continuous power output with 40℃ operating temperature

■ 100% modular cables

■ Class-leading single +12V rail

■ Strict ±3% voltage regulation and low ripple & noise

■ Silent running 120mm fan with 18dBA

■ PCI-E 8pin and PCI-E 6pin connectors support

      The Strider series is the most versatile and time-proven line of power supply products from SilverStone with models rated from 500W to 1500W and packed with innovative features. To build on this impressive lineup, SilverStone engineered a new generation of power supplies that combine more features than ever before.
The Strider Plus ST60F-PB boasts the important features professionals and enthusiasts crave:
•High efficiency: 80 PLUS Bronze level
•Compact size (140mm depth) to fit in nearly any system
•Class-leading powerful single +12V rail with 46A
•Quiet and cool 120mm fan
The versatility of these power supplies extends to the 100% modular cables with all the important connectors to support current and future graphics card specifications.
For enthusiasts that are looking for the power supply with all the right features to make a high performing and aesthetically pleasing system, the Strider Plus series reaches the goal with maximum satisfaction.

Model No.
SST-ST60F-PB
Max. DC Output
600W (Peak 650W)
Power density
332W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
20A 17A 46A 2.5A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0.1A 0.2A 0.5A 0A 0A
Range (%)
±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
120W
Combined +12V
552W
Input Voltage
90V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
82%~85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
2 x 8 / 6-Pin PCIE connector("550mm"x2)
2 x 6-Pin PCIE connector("550mm / 150mm" x 2)
8 x SATA connector("600mm / 150mm / 150mm /150mm" x 2)
3 x 4-Pin Peripheral connector (600mm / 150mm / 150mm)
1 x 4-Pin Floppy connector(600mm / 150mm / 150mm / 150mm)
Cooling System
Single 120mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
2.0 kg
Certification
80 PLUS Bronze
Other
GPU Support list
Compatible with ATX12V v2.4
Extra info
Extra info
EAN 4710007221723
Vendor ID SST-ST60F-PB
Voorraad status Nee
Energie Certificering 80 Plus Bronze
Modulair Ja
Wattage 600W - 700W
Aantal ATX 12V 1 x 8 (2x4) polig
Aantal PCI-E 2 x 6+2 / 2 x 6-polig
Sata connectors 8 X Sata
Molex 4-pin 3 x molex
