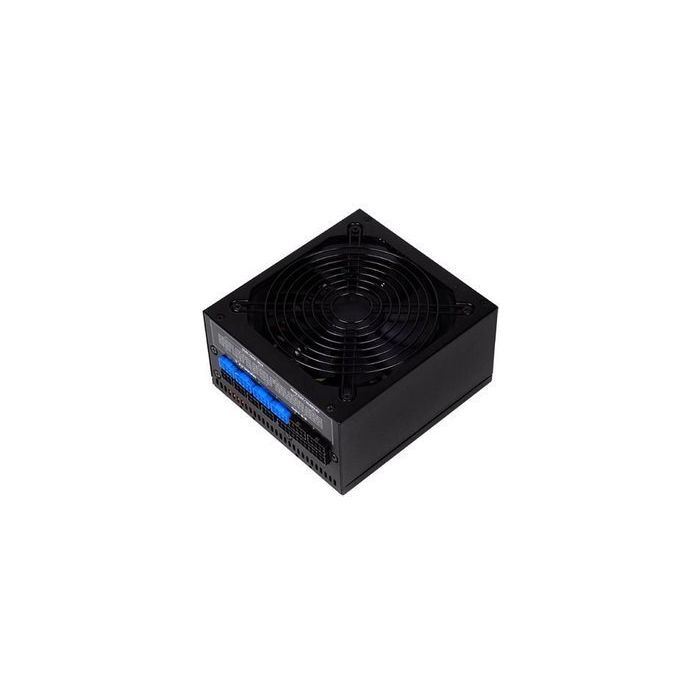

SilverStone Strider 750W

€126,00
End of life
SKU
TN7I10
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

■ 750W 24hour continuous power output with 40℃operating temperature

■ 800W peak power

■ 100% modular cables

■ Efficiency 85%~88% at 20%~100% loading

■ Class-leading single +12V rail with 60A (peak 66A)

■ Strict ±3% voltage regulation and low ripple & noise

■ Japanese main capacitors

■ Silent running 135mm fan with 19dBA minimum

■ Dual EPS 8pin connectors support

■ Dual PCI-E 8pin and four PCI-E 6pin connectors support

■ Supports ATX 12V 2.3 & EPS 12V

■ Active PFC

         The Strider series, as the oldest and most versatile power supply line from SilverStone, has models with myriad of innovative features and rating from 350W all the way up to 1500W. To build on this impressive lineup, SilverStone engineered a new generation of power supplies that combine more important features than ever before. The Strider Plus models, ST75F-PST85F-P, and ST1000-P are highly efficient (80 PLUS Silver level), compact enough to fit in nearly any system (160mm depth), have tightly regulated performance of ±3% from a single +12V rail design, and equipped with a quiet but cool 135mm fan. To top these features off, the power supplies also come with 100% modular cables with all the important connectors to support current and future graphics card specifications. For enthusiasts that are looking for a power supply with all the right features to make a high performing and aesthetically pleasing system, any one of the Strider Plus models will fulfill the task with maximum satisfaction.
Model No.
SST-ST75F-P
Max. DC Output
750W(Peak 800W)
Power density
363W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
20A 25A 60A 3.5A 0.3A
Peak (Amps)
/ / 66A / /
Min.(Amps)
0A 0.5A 0.1A 0.1A 0A
Range (%)
±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
150W
Combined +12V
720W/60A(Peak 66A)
Input Voltage
90V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC(PF>0.95 at full load)
Efficiency
85%~88%(20% to 100% loading)
MTBF
100,000 hours at 25°C, full load
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection
No load protection
Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
2 x 8/6-Pin PCIE connector(550mm)
2 x 6-Pin PCIE connector(550mm)
6 x SATA connector(500mm / 250mm / 250mm)
6 x 4-Pin Peripheral connector (500mm / 250mm / 250mm)
2 x 4-Pin Floppy connector(500mm / 250mm / 250mm / 150mm)
Cooling System
Silent 135mm fan
Form factor
Noise Level
19dBA-36dBA
Dimension
150 mm (W) x 86 mm (H) x 160 mm (D)
5.91" (W) x 3.39" (H) x 6.3" (D)
Weight
2.8 kg
Certification
80 PLUS Silver
Other
GPU Support list
Compatible with ATX12V v2.4
Meer informatie
EAN 4710713966512
Vendor ID SST-ST75F-P
Voorraad status End of life
Energie Certificering 80 Plus Silver
Modulair Ja
Wattage 700W - 800W
Aantal ATX 12V 2 x 8 (4x4) polig
Aantal PCI-E 2 x 6+2 / 2 x 6-polig
Sata connectors 6 X Sata
Molex 4-pin 6 x molex
