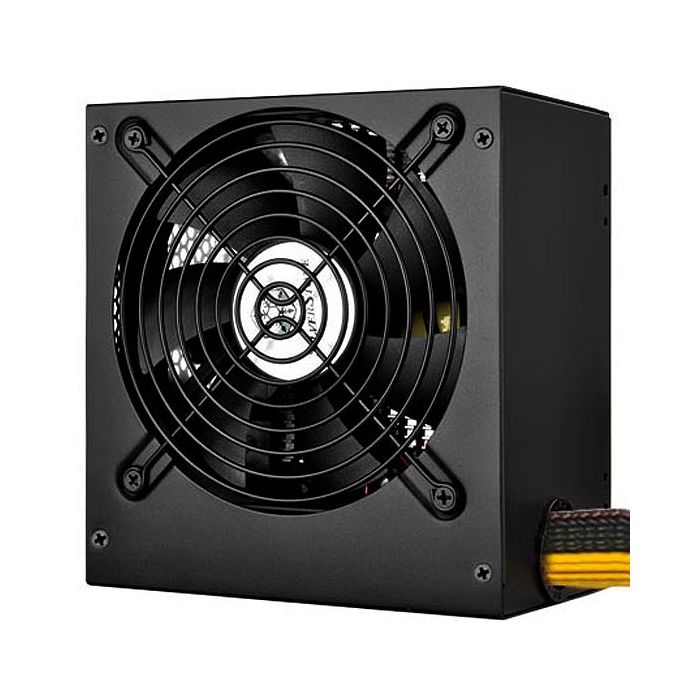

SilverStone Strider Essential 500W

Beschikbaarheid: Op voorraad bij leverancier (2-5 werkdagen)

€ 58,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

SilverStone
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

         After successfully serving enthusiasts for years, the Strider Essential series has proven quality and dependable PSUs can indeed be had at affordable prices. So to further improve value for users looking to build great performing PCs, SilverStone has released the Strider Essential Bronze ST50F-ESB and ST40F-ESB PSUs to the series. The two newly redesigned 500w and 400w PSUs retain all essential features such as single +12V rail, multiple circuit protection and useful PCI-E connectors to support various mainstream graphic card designs. With its upgraded 80 PLUS Bronze efficiency and the ability to provide 24/7 continuous output, the Strider Essential Bronze PSUs are solid choices for PC builders.

Model No.
SST-ST50F-ESB
Max. DC Output
500W
Power density
277W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
20A 20A 37.5A 2.5A 0.3A
Peak (Amps)
/ / / 3.5A /
Min.(Amps)
0.1A 0.2A 0.6A 0A 0A
Range (%)
±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
combined +3.3, +5V
103W
combined +12V
450W
Input Voltage
103.5 ~ 253 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at Full Load)
Efficiency
82%~85% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Power Protection
Over Voltage Protection
Under voltage protection
Short Circuit Protection
Connectors
1 x 24 / 20-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
1 x 8/6-Pin PCIE connector(500mm)
1 x 6-Pin PCIE connector(500mm / 150mm)
6 x SATA connector("500mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm)
Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Dimension
150 mm (W) × 86 mm (H) × 140 mm (D)
Weight
1.75Kg
Form factor
Certification
80 PLUS Bronze
Other
GPU Support list
Compatible with ATX12V v2.4


Extra info
Extra info
EAN 4710007221709
Vendor ID SST-ST50F-ESB
Voorraad status Nee
Energie Certificering 80 Plus Bronze
Modulair Nee
Wattage 500W - 600W
Aantal ATX 12V 1 x 8 (2x4) polig
Aantal PCI-E 1x 6+2 / 1x 6-polig
Sata connectors 6 X Sata
Molex 4-pin 3 x molex
Eigen tags
Eigen tags

Gebruik spaties om tags te scheiden. Gebruik enkele aanhalingstekens (‘) voor woordgroepen.

Garantie

Minstens 2 jaar carry in garantie

Bij ons krijgt u altijd de fabrieksgarantie, dus dat kan variëren van 2, 3, 5 en 7 jaar tot soms lifetime garantie van de fabrikant !

Notebook en monitor fabrikanten hanteren vaak een ophaal en retour service.
