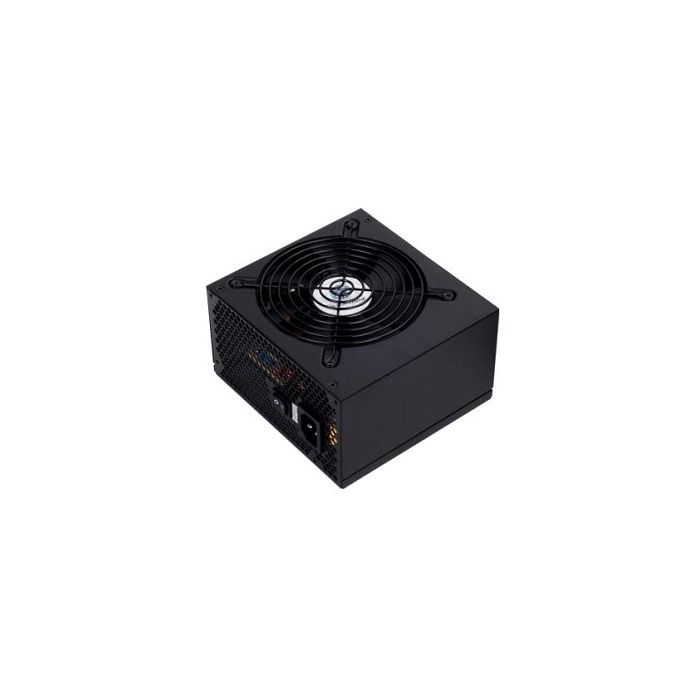

SilverStone Strider Essential 700W

€74,00
End of life
SKU
TN7I13
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

■ High efficiency with 80 PLUS Bronze certification

■ 24/7 continuous power output with 40℃ operating temperature

■ Class-leading single +12V rail

■ Multiple protection circuitry

■ Silent running 120mm fan with 18dBA

■ PCI-E 8pin and PCI-E 6pin connectors support

■ ATX 12V 2.3 support

■ Active PFC

       After successfully serving enthusiasts for years, the Strider Essential series has proven quality and dependable PSUs can indeed be had at affordable prices. So to further improve value for users looking to build great performing PCs, SilverStone has released the Strider Essential Bronze ST70F-ESB and ST60F-ESB PSUs to the series. The two newly redesigned 700w and 600w PSUs retain all essential features such as single +12V rail, multiple circuit protection and useful 8pin/6pin PCI-E connectors to support various mainstream graphic card designs. With its upgraded 80 PLUS Bronze efficiency and the ability to provide 24/7 continuous output, the Strider Essential Bronze PSUs are solid choices for PC builders.

Model No.
SST-ST70F-ESB
Max. DC Output
700W
Power density
388W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
22A 18A 54A 2.5A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0.1A 0.2A 0.5A 0A 0A
Range (%)
±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
130W
Combined +12V
648W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at Full Load)
Efficiency
82%~85% @ 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
2 x 8 / 6-Pin PCIE connector(500mm)
2 x 6-Pin PCIE connector(500mm / 150mm)
6 x SATA connector("500mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm)
Cooling System
Single 120mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
2.05kg
Certification
80 PLUS Bronze
Other
GPU Support list
Compatible with ATX12V v2.4
Meer informatie
EAN 4710007220931
Vendor ID SST-ST70F-ESB
Voorraad status End of life
Energie Certificering 80 Plus Bronze
Modulair Nee
Wattage 700W - 800W
Aantal ATX 12V 1 x 8 (2x4) polig
Aantal PCI-E 2 x 6+2 / 2 x 6-polig
Sata connectors 6 X Sata
Molex 4-pin 3 x molex
