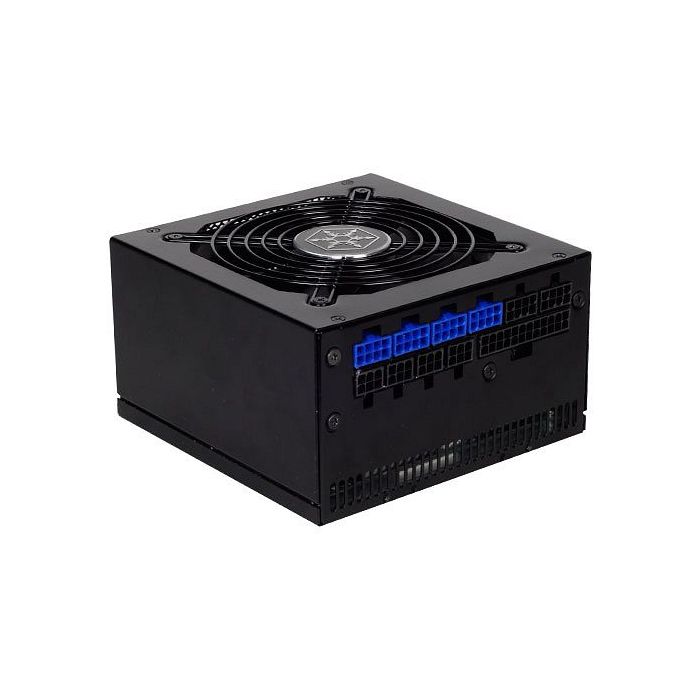

SilverStone Strider Gold S 750W

Beschikbaarheid: Op voorraad bij leverancier (2-5 werkdagen)

€ 107,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

SilverStone
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

■ Compact design with a depth of 140mm for easy integration

■ 80 PLUS Gold certification

■ 100% modular cables

■ 24/7 continuous power output with 40℃ operating temperature

■ Class-leading single +12V rail

■ Strict ±3% voltage regulation and low ripple & noise

■ Silent running 120mm fan with 18dBA minimum

   To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels. The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world’s smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 40℃ continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.

Model No.
SST-ST75F-GS
Max. DC Output
750W
Power density
415W per liter
Load Range

+3.3V +5V +12V +5VSB -12V
Max.(Amps)
22A 22A 62.5A 3.0A 0.3A
Min.(Amps)
0.5A 0.2A 0A 0A 0A
Range (%)
±3% ±3% ±3% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black (lead-free paint)
Combined +3.3V & +5V
120W
Combined +12V
750W
Input Voltage
90V~264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC.(PF>0.95 at Full Load)
Efficiency
87%~90% at 20%~100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Over Temperature Protection
Under voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
4x 8/6-Pin PCIE connector("550mm / 150mm'"x2)
8 x SATA connector("600mm / 150mm / 150mm /150mm" x 2)
6 x 4-Pin Peripheral connector("600mm / 150mm / 150mm"x2)
2 x 4-Pin Floppy connector("600mm / 150mm / 150mm / 150mm"x2)
Cooling System
Single 120mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
2.1 kg
Certification
80 PLUS Gold
Other
GPU Support list
Compatible with ATX12V v2.4
Extra info
Extra info
EAN 4710007220504
Vendor ID SST-ST75F-GS v 2.0
Voorraad status Nee
Energie Certificering 80 Plus Gold
Modulair Ja
Wattage 700W - 800W
Aantal ATX 12V 1 x 8 (2x4) polig
Aantal PCI-E 4 x 6+2-polig
Sata connectors 8 X Sata
Molex 4-pin 6 x molex
