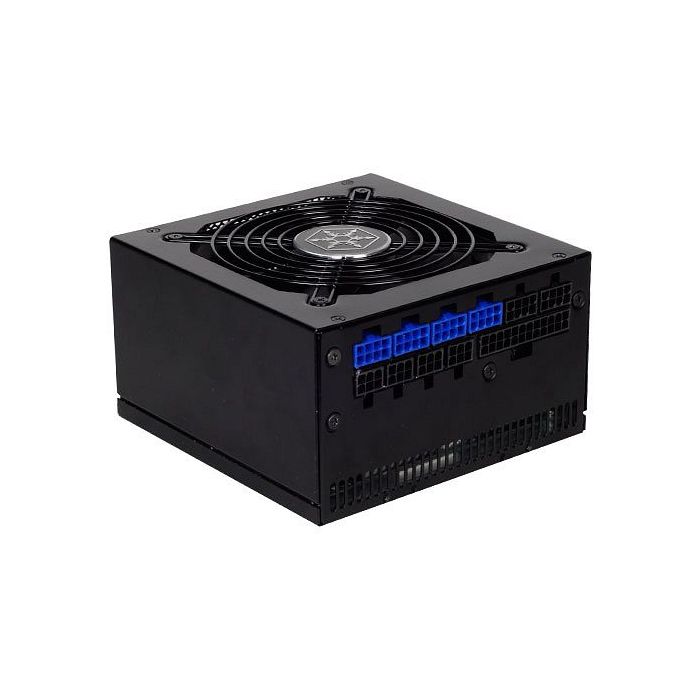

SilverStone Strider Gold S 850W
€155,00
End of life
SKU
TN8I15
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
■ Compact design with a depth of 150mm for easy integration
■ 80 PLUS Gold certification
■ 100% modular cables
■ 24/7 continuous power output with 40℃ operating temperature
■ Class-leading single +12V rail
■ Strict ±3% voltage regulation and low ripple & noise
■ Silent running 120mm fan with 18dBA minimum
To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels. The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world’s smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 40℃ continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.
Model No. |
SST-ST85F-GS
|
||||||||||||||||||||||||||||||||||||
Max. DC Output |
850W (Peak 900W)
|
||||||||||||||||||||||||||||||||||||
Power density |
439W per liter
|
||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
Color |
Black (lead-free paint)
|
||||||||||||||||||||||||||||||||||||
Combined +3.3V & +5V |
150W
|
||||||||||||||||||||||||||||||||||||
Combined +12V |
840W
|
||||||||||||||||||||||||||||||||||||
Input Voltage |
90V~264V
|
||||||||||||||||||||||||||||||||||||
Input Frequency Range |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||
PFC |
Active PFC.(PF>0.95 at Full Load)
|
||||||||||||||||||||||||||||||||||||
Efficiency |
88%~91% at 20%~100% loading
|
||||||||||||||||||||||||||||||||||||
MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||
Operating temperature |
0°C ~ 40°C
|
||||||||||||||||||||||||||||||||||||
Protection |
Over current protection
Over power protection Over voltage protection Over Temperature Protection Under voltage protection Short circuit protection |
||||||||||||||||||||||||||||||||||||
Connectors |
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(550mm) 4 x 8 / 6-Pin PCIE connector(550mm) 8 x SATA connector(”600mm / 150mm / 150mm / 150mm” x 2) 6 x 4-Pin Peripheral connector (”600mm / 150mm / 150mm” x 2) 2 x 4-Pin Floppy connector(”600mm / 150mm / 150mm / 150mm” x 2) |
||||||||||||||||||||||||||||||||||||
Cooling System |
Single 120mm silent fan
|
||||||||||||||||||||||||||||||||||||
Form factor | |||||||||||||||||||||||||||||||||||||
Noise Level |
18 dBA minimum
|
||||||||||||||||||||||||||||||||||||
Dimension |
150 mm (W) x 86 mm (H) x 150 mm (D)
5.91" (W) x 3.39" (H) x 5.91" (D) |
||||||||||||||||||||||||||||||||||||
Weight |
2.5 kg
|
||||||||||||||||||||||||||||||||||||
Certification |
80 PLUS Gold
|
||||||||||||||||||||||||||||||||||||
Other |
GPU Support list
Compatible with ATX12V v2.4 |
EAN | 4710007220511 |
---|---|
Vendor ID | SST-ST85F-GS v 1.1 |
Voorraad status | End of life |
Energie Certificering | 80 Plus Gold |
Modulair | Ja |
Wattage | 800W - 900W |
Aantal ATX 12V | 2 x 8 (4x4) polig |
Aantal PCI-E | 4 x 6+2-polig |
Sata connectors | 8 X Sata |
Molex 4-pin | 6 x molex |
