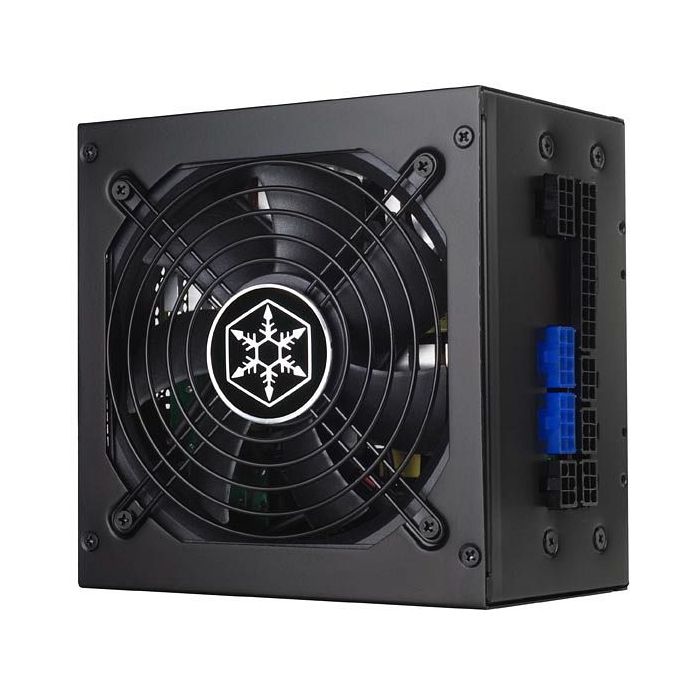

SilverStone Strider Gold Series 650W
To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels. The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world’s smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 40℃ continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.
| Model No. |
SST-ST65F-G
|
||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output |
650W
|
||||||||||||||||||||||||||||||||||||||||||
| Power density |
360W per liter
|
||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
| Color |
Black (lead-free paint)
|
||||||||||||||||||||||||||||||||||||||||||
| combined +3.3, +5V |
120W
|
||||||||||||||||||||||||||||||||||||||||||
| combined +12V |
650W
|
||||||||||||||||||||||||||||||||||||||||||
| Input Voltage |
90V~264V
|
||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||||||||
| PFC |
Active PFC.（PF>0.9 at Full Load）
|
||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
87%~90% at 20%~100% loading
|
||||||||||||||||||||||||||||||||||||||||||
| MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||||||||
| Operating temperature |
0°C ~ 40°C
|
||||||||||||||||||||||||||||||||||||||||||
| Protection |
Over Current Protection
Over Power Protection Over Voltage Protection Short Circuit Protection Under voltage protection Over Temperature Protection |
||||||||||||||||||||||||||||||||||||||||||
| Connectors |
1 x 24 / 20-Pin motherboard connector（550mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 2 x 8/6-Pin PCIE connector（"550mm '"x2） 2 x 6-Pin PCIE connector（"550mm / 150mm'"x2） 8 x SATA connector（"600mm / 150mm / 150mm /150mm" x 2） 6 x 4-Pin Peripheral connector（"600mm / 150mm / 150mm"x2） 2 x 4-Pin Floppy connector（"600mm / 150mm / 150mm / 150mm"x2） |
||||||||||||||||||||||||||||||||||||||||||
| Cooling System |
Single 120mm silent fan
|
||||||||||||||||||||||||||||||||||||||||||
| Noise Level |
18 dBA minimum
|
||||||||||||||||||||||||||||||||||||||||||
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
|
||||||||||||||||||||||||||||||||||||||||||
| Weight |
2.0kg
|
||||||||||||||||||||||||||||||||||||||||||
| Form factor | |||||||||||||||||||||||||||||||||||||||||||
| Certification |
80 PLUS Gold
|
||||||||||||||||||||||||||||||||||||||||||
| Other |
GPU Support list
Compatible with ATX12V v2.4 |
||||||||||||||||||||||||||||||||||||||||||
| EAN | 4710713969261 |
|---|---|
| Vendor ID | SST-ST65F-G |
| Voorraad status | End of life |
| Energie Certificering | 80 Plus Gold |
| Modulair | Ja |
| Wattage | 600W - 700W |
| Aantal ATX 12V | 1 x 8 (2x4) polig |
| Aantal PCI-E | 2 x 6+2 / 2 x 6-polig |
| Sata connectors | 8 X Sata |
| Molex 4-pin | 6 x molex |
