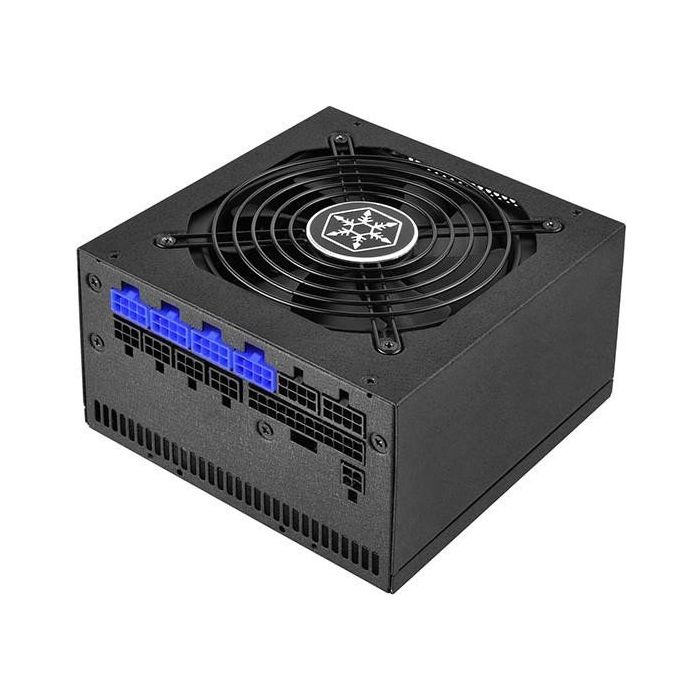

SilverStone Strider Titanium 600W
￭ High efficiency with 80 PLUS Titanium certification
￭ Compact design with a depth of 150mm for easy integration
￭ All Japanese capacitors
￭ 100% modular cables
￭ 24/7 continuous power output with 40℃ operating temperature
￭ Class-leading single +12V rail
￭ Strict ±3% voltage regulation and low ripple & noise
￭ Silent running 120mm fan with 18dBA minimum
Introduced in 2012, the 80 PLUS Titanium represent the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. This stringent standard makes mass producing 80 PLUS Titanium certified power supplies below 1000W extremely challenging. However, as a leader in power supply miniaturization, SilverStone successfully mass-produced a new line of power supplies ── the Strider Titanium series. Their compact design makes them the world's smallest fully modular ATX power supplies with 80 PLUS Titanium efficiency. Other enthusiasts features included are all Japanese capacitors, ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build the most efficient systems possible with great quality, the Strider Titanium is definitely the top choice.
| Model No. |
SST-ST60F-TI
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output |
600W (Peak 650W)
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Power density |
300W per liter
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Color |
black (lead-free paint)
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V |
100W
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Combined +12V |
588W
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Input Voltage |
90V ~ 264V
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range |
47Hz ~ 63Hz
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| PFC |
Active PFC (PF>0.9 at full load)
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
90% ~ 94% at 10% ~ 100% loading
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF |
100,000 hours
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Operating temperature |
0 ~ 40°C
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Protection |
Over Current Protection
Over Power Protection Over Voltage Protection Short Circuit Protection Under voltage protection Over Temperature Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors |
1 x 24 / 20-Pin motherboard connector（550mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 2 x 8 / 6-Pin PCIE connector（"550mm" x 2） 2 x 6-Pin PCIE connector（"550mm" x 2） 8 x SATA connector（"600mm / 150mm / 150mm / 150mm" x 2） 3 x 4-Pin Peripheral connector（600mm / 150mm / 150mm） 1 x 4-Pin Floppy adapter connector（100mm） |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling System |
Single 120mm silent fan
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Form factor | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Level |
18 dBA minimum
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension |
150 mm (W) x 86 mm (H) x 150 mm (D)
5.91" (W) x 3.39" (H) x 5.91" (D) |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
2.7 kg
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Certification |
80 PLUS Titanium
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Other |
GPU Support list
Compatible with ATX12V v2.4 |
|||||||||||||||||||||||||||||||||||||||||||||||||
| If you want to connect four SSDs on one SATA cable, please note that the total +5V output of each cable cannot exceed 5A. We recommend installing on two independent SATA cables to avoid overloading on the cables. |
| EAN | 4710007222850 |
|---|---|
| Vendor ID | SST-ST60F-TI |
| Voorraad status | End of life |
| Energie Certificering | 80 Plus Titanium |
| Modulair | Ja |
| Wattage | 600W - 700W |
| Aantal ATX 12V | 1 x 8 (2x4) polig |
| Aantal PCI-E | 2 x 6+2 / 2 x 6-polig |
| Sata connectors | 8 X Sata |
| Molex 4-pin | 3 x molex |
Minstens 2 jaar carry in garantie
Bij ons krijgt u altijd de fabrieksgarantie, dat kan variëren van 2, 3, 5 tot 10 jaar of soms lifetime* garantie van de fabrikant !
Notebook en monitor fabrikanten hanteren vaak een ophaal en retour service.
Bewaar altijd de verpakking van het product, op die manier gaat de afhandeling vele malen sneller!
En bent u niet verantwoordelijk voor enige transportschade wegens ondeugdelijke verpakking.
* Lifetime = Zo lang het product gefabriceerd wordt bij de fabrikant.
