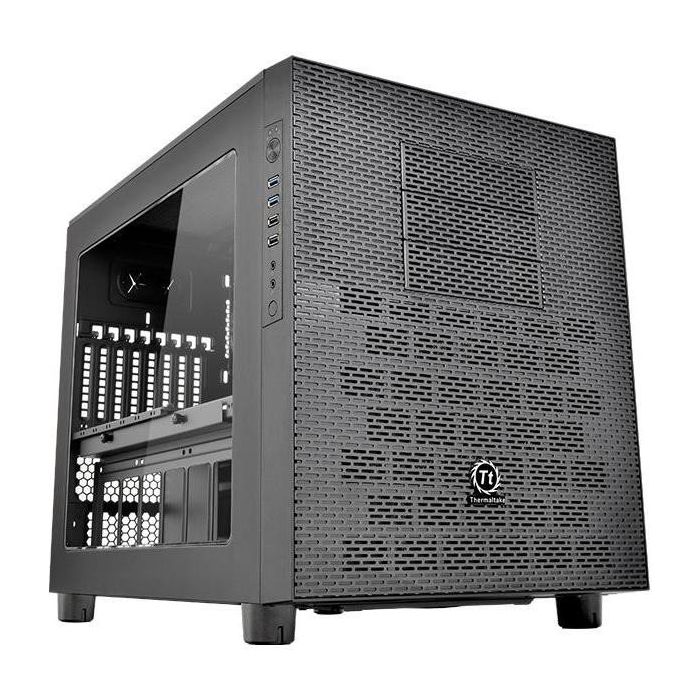

Thermaltake Core X5

€191,00
End of life
SKU
TQXTD7
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

The Core X5, the new ATX chassis that completes the Core X Series case line, is a cube case offering endless stackable capacity and expandability for enthusiasts to create massive liquid cooling systems for a single system, file server, or even dual systems. Users can customize the chassis for the best viewing presentation with an interchangeable window and I/O panel design. The Core X5 delivers outstanding cooling performance with compatibility for extensive DIY/AIO LCS and overclocking components, further enhancing the reputation that the air-cooling units in this series has become renowned for. It is guaranteed to be an immensely powerful system!


Stackable and Expandable for Enthusiasts
With its endless stacking design, the Core X5 is in a class above the rest. Virtually limitless utility is possible; it offers an expandable system allowing enthusiasts to incorporate externally modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even to create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 540mm on the front side.

Fully Modular Design
A “3 +7” drive bay concept design for storage devices makes setting up the best storage solution on the market super easy and flexible. Additionally, a customizable 3.5” & 2.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit their particular needs.

Interchangeable Window and I/O Panel
Allowing for yet more flexibility, the chassis can be customized for the best viewing presentation with an interchangeable window and I/O panel design.
Model Core X5
P/N CA-1E8-00M1WN-00
Case Type E-ATX Cube Case
Dimension (H x W x D) 463 x 371 x 540 mm (18.2 x 14.6 x 21.3 inch)
Net Weight 12 kg / 26.5 lb
Side Panel Transparent Window
Color Exterior & Interior : Black
Material SGCC
Cooling System Front (intake) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays 3 x 5.25’’
-Accessible:4 x 3.5’’ or 2.5’’ (HDD Cage)
-Hidden: 3 x 2.5’’ (HDD Tray)

Expansion Slots 8
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (Extend ATX)
PSU Standard PS2 PSU (optional)
I/O Port USB 3.0 x 2, USB 2.0 x 2,HD Audio x 1
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
Fan Support Front:
3 x 120mm , 2 x 140mm , 1 x 200mm
Top:
6 x 120mm , 4 x 140mm , 2 x 200mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
6 x 120mm
Left / Right Side:
3 x 120mm
Radiator Support Front:
1 x 360mm , 1 x 280mm , 1 x 200mm
Top:
2 x 360mm , 1 x 280mm , 1 x 400mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
2 x 360mm
Left / Right Side: 1 x 360mm
Clearance CPU cooler height limitation:
230mm
VGA length limitation:
330mm(with ODD Cage)
480mm(without ODD Cage)
PSU length limitation:
220mm (With Bottom Fan)


Meer informatie
EAN 4717964402547
Vendor ID CA-1E8-00M1WN-00
Voorraad status End of life
Soort kast Full tower
Materiaal Staal
Aantal 3,5 inch intern 4 bays
Aantal 2,5 inch intern 3 bays
Aantal 5,25 inch extern 3 bays
Venster in de zijkant Ja
Front USB aansluiting USB 2.0 / USB 3.0
Form Factor EATX
Inclusief voeding Nee
Color Zwart
