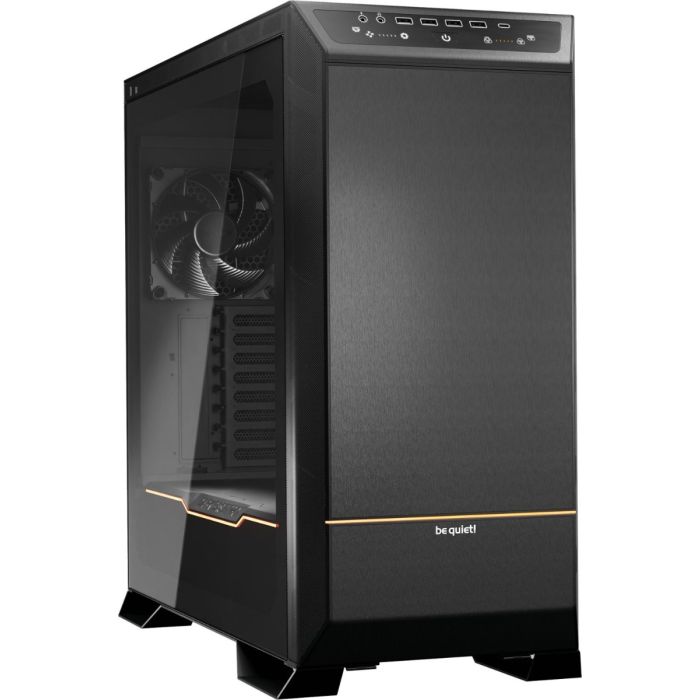

be quiet! Dark Base Pro 901
€309,00
Op voorraad bij leverancier (2-5 werkdagen)
SKU
wb00023729
OUTSTANDING VERSATILITY, PERFORMANCE AND SILENCE
Dark Base Pro 901 is the epitome of a flexible, yet user-friendly case.
Interchangeable top cover and front panel for either maximum airflow or virtually inaudible operation
Fan and radiator brackets with integrated fan hub in front and top make installation a breeze
3 Silent Wings 4 PWM fans for a virtually inaudible operation and high performance
Touch-sensitive I/O panel for state-of-the-art operation
Generous dimensions ensure operation of E-ATX motherboards and radiators up to 420mm
Well-conceived system for an extremely user-friendly handling
Flexible motherboard tray for an inverted layout
Subtle ARGB lighting in the front and the PSU Shroud
Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !
Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !
General data
Model Dark Base Pro 901
Color option Black
Motherboard compatibility E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm) 604 x 254 x 539
Case size incl. stands (L x W x H), (mm) 604 x 275 x 569
Volume (l) 82.69
PSU form factor ATX PS/2
Weight (kg) 16.3
Expansion slots 8
Infographics
Pre-installed fans
Fan at top -
Fan at front 2x Silent Wings 4 140mm PWM
Fan at side -
Fan at rear 1x Silent Wings 4 140mm PWM
Fan at bottom -
Dimensions (L x W x H), (mm) Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm) 1900
Airflow at 100% PWM / 12V (CFM / m3/h) 78.4 / 133.20
Air Pressure at 100% PWM / 12V (mm H2O) 2.36
Noise level at 100% PWM / 12V (dB(A)) 29.3
Voltage range (V DC) 12
Input power (W) 4.8
Input current (A) 0.4
Connector 4-pin PWM
Lifespan (h / 25°C) 300,000
Fan controller -
Maximum fan installation
Maximum fans 11
Top (mm) 3x 140 / 3x 120
Front (mm) 3x 140 / 3x 120
Side (mm) 3x 120
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 1x 140 / 1x 120
PSU shroud -
Optional radiator installation
Top (mm) 120 / 240 / 360
Front (mm) 120 / 140 / 240 / 280 / 360 / 420
Side (mm) 120 / 240 / 360
Rear (mm) 120 / 140
Bottom (mm) -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) -
Maximum dimensions incl. bottom fan (mm) -
Graphics card
HDD cage (in height of graphics card) installed (mm) 350 / 370
HDD cage (in height of graphics card) removed (mm) 495
Maximum PCIe slots with vertical graphics card (pcs.) 8
Drive bay capacity
5.25 bays (pcs.) 1
3.5 slots (scope of delivery) 2
3.5 slots (max.) 7
2.5 slots (scope of delivery) 6
2.5 slots (max.) 16
Cooling
Max.construction height of CPU cooler unit (mm) 190
Airflow channel -
Lighting
LED illumination ✓
LEDs (pcs.) 8 + 16
LED type ARGB - 5V
LEDs synchronizable with controller/motherboard ✓
I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 4
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option 15W
Insulation and damping
Top panel insulation mats ✓
Front panel insulation mats ✓
Side panel insulation mats ✓
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan ✓
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray ✓
Removeable dust filters
Top -
Front 1
Side 0
Bottom 1
Material
Top cover Aluminium
Front panel Aluminium
Side panel Glas
Side panel window Steel
Stands Steel
Safety certification
Approvals CE, UKCA
Environmental directives
RoHS ✓
Reach ✓
WEEE -
Triman ✓
Scope of delivery
Screw set (Drives/Motherboard) ✓
Additional standoffs (pcs.) 3 (for E-ATX)
SSD bracket for PSU shroud -
LED strips (pcs.) 0
Cable ties (pcs.) 12
Screw box ✓
VGA holder ✓
VGA holder for inverted layout ✓
Mesh Front Panel ✓
ODD Bracket ✓
Fan / Radiator bracket for multi mounting panel ✓
Service
Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR
Logistics data and RRP
Article number BGW50
EAN code 4260052190142
Dimensions, package (L x W x H), (mm) 633 x 357 x 684
Gross weight, package (kg) 20.8
EAN | 4260052190142 |
---|---|
Vendor ID | BGW50 |
Soort kast | Full tower |
Materiaal | Staal / Glas |
Aantal 3,5 inch intern | 2 bays |
Aantal 2,5 inch intern | 6 bays |
Aantal 5,25 inch extern | 1 bay |
Venster in de zijkant | Ja |
Front USB aansluiting | USB 3.0 / USB 3.1 |
Form Factor | EATX |
Inclusief voeding | Nee |
Color | Zwart |
