Noctua NH-L9x65U

Momenteel nog maar 2 stuk(s) bij de distri !

Beschikbaarheid: Op voorraad bij leverancier (2-5 werkdagen)

€ 48,00

Vragen over dit product ? Of wenst u meer info... - Bel ons 014610096 !

Twijfelt u over compatibiliteit, gelieve ons even te contacteren, we helpen u graag verder !

Noctua
My icon

Meer dan 17 jaar ervaring met high-end pc's !

My icon

Korte reactietijd op vragen via mail ! Vragen? Mail ons...

My icon

Uw order altijd goed verpakt !

My icon

Niet alleen een online shop, maar ook een échte winkel ! Meer info...


Beschrijving
Details

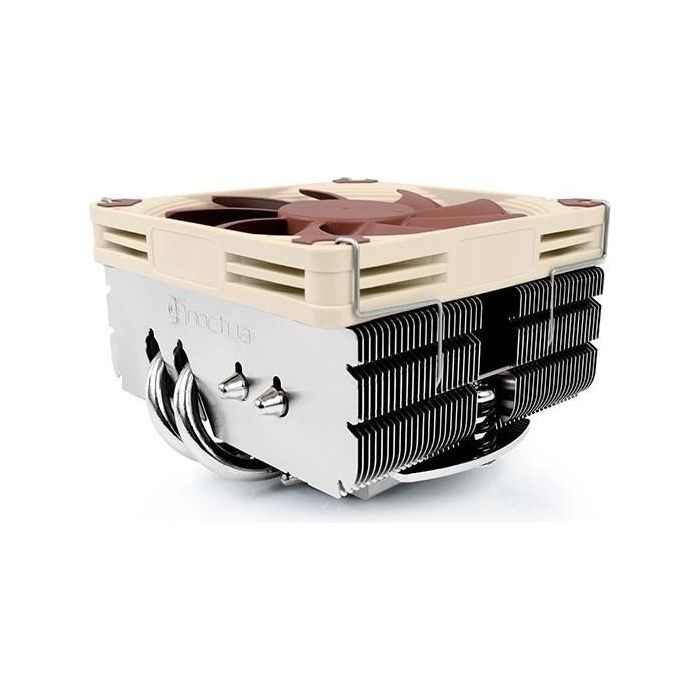

The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.

Caution: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.



Cooler Specification

Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 with NM-AM4
Height (without fan)
51 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Height (with fan)
65 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (without fan)
340 g
Weight (with fan/s)
413 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
Fan compatibility
92x92x14, 92x92x25
Scope of Delivery
  • NF-A9x14 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Noctua Metal Case-Badge
Warranty
6 Years

FAN Specification

Model
Noctua NF-A9x14 PWM
Bearing
Max. Rotational Speed (+/- 10%)
2500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%)
1800 RPM
Min. Rotational Speed (PWM, +/-20%)
600 RPM
Max. Acoustical Noise
23,6 dB(A)
Max. Acoustical Noise with L.N.A.
14,8 dB(A)
Input Power
2,52 W
Voltage Range
12 V
MTTF
> 150.000 h

Extra info
Extra info
EAN 4716123315629
Vendor ID NH-L9x65
Voorraad status Nee
Socket Socket 1150, Socket 1151, Socket 1155/1156, Socket 2011, Socket 2011-v3, Socket 2066, Socket AM2/AM3, Socket AM3+, Socket FM1, Socket FM2/FM2+
Aantal Heatpipes 2 Heatpipes
Type koeling Lucht koeling
