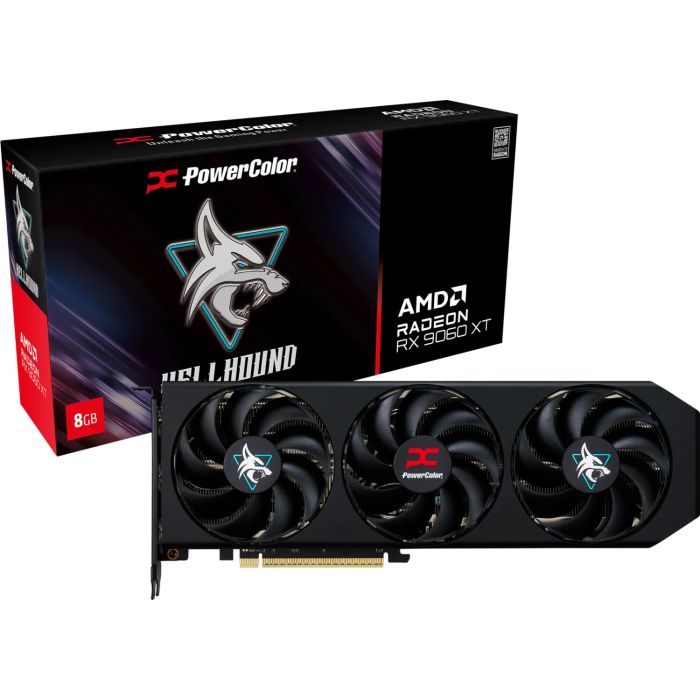

PowerColor Hellhound Radeon RX 9060 XT 8GB

SPECIFICATION
Graphics Engine AMD Radeon™ RX 9060 XT
Model Name RX9060XT 8G-L/OC
Series Hellhound
Stream Processor 2048 Units
Video Memory 8GB GDDR6
Memory Speed 20.0 Gbps
Memory Interface 128-bit
Engine Clock(OC) up to 2740MHz(Game)¹ up to 3310MHz(Boost)²
Engine Clock(STD/Silent) up to 2620MHz(Game)¹ up to 3230MHz(Boost)²
Bus Standard PCIE 5.0 x16
Standard Display Connectors 1 x HDMI 2.1b，2 x DisplayPort 2.1a

Feature Support
DirectX® Support 12
OpenGL 4.6
AMD Eyefinity Technology Support
AMD Stream Technology Support
AMD Smart Access Memory Support

Maximum Resolution
DisplayPort 7680×4320
HDMI 7680×4320

Power Specs + Board Dimensions
Board Dimensions 310mm*100mm*40mm 330mm*120mm*40mm(with bracket)
Slot 2
Minimum System Power requirement (W) 550W
Extension Power Connector One 8-pin PCI Express Power connector

Remark
¹Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
²Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.

The entire information provided herein are for reference only.
PowerColor reserves the right to modify or revise the content at anytime without prior notice.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
